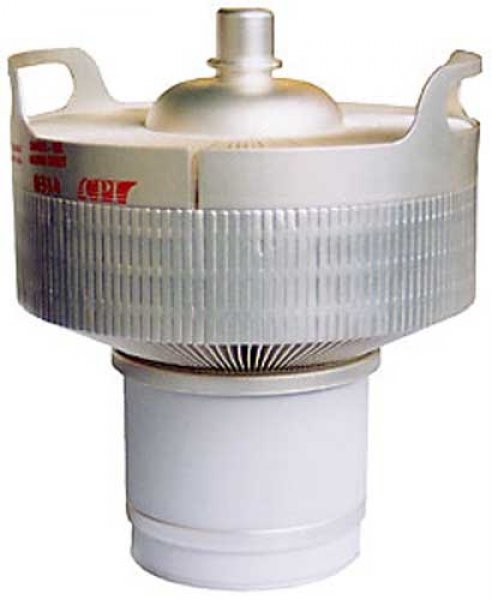

EIMAC 3CX15000A7 Tabung
The 3CX15,000 A7 is a high-mu power triode intended for use as a zero bias Class B RF amplifier
or Class C power amplifier or oscillator. It is also recommended for use as a grounded grid FM
amplifier. Class B operation with zero bias offers circuit simplicity. In addition, grounded grid operation
is attractive since a power gain as high as twenty times can be obtained.
Specification:
Plate Dissipation (Max.)
15,000 Watts
Screen Dissipation (Max.)
---
Grid Dissipation (Max.)
500 Watts
Frequency for Max. rating (CW)
110 MHz
Amplification Factor
200
Filament/Cathode
Thoriated Tungsten
Voltage
6.3 Volts
Current
160 Amps
Capacitance
Grounded Cathode
Input
61.0 pf
Output
0.2 pf
Feedthrough
36 pf
Capacitance
Grounded Grid
Input
61.0 pf
Output
36.0 pf
Feedthrough
0.2 pf
Cooling
Forced Air
Base
Coaxial
Air Socket
SK-1300
Air Chimney
SK-1306
Boiler
---
Length
8.75 in; 222.30 mm
Diameter
7.05 in; 179.10 mm
Weight
12.0 oz; 5.5 kg
