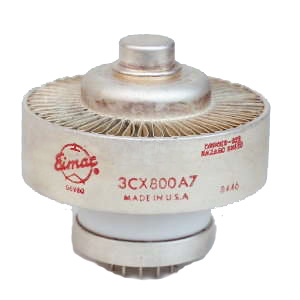

EIMAC 3CX800A7 Tabung
EIMAC 3CX800A7 Tabung
The 3CPX800A7 is a compact high-mu power triode intended for use in zero bias Class B amplifiers
in pulsed radio frequency applications. It may also be used as a pulse modulator or regulator. A single 3CPX800A7 will deliver 6 kW peak output in drive-pulsed RF service. This device is also recommended
for FM broadcast service at 108MHz, with typical output power of 900W.
Specification:
Plate Dissipation (Max.)
800 Watts
Screen Dissipation (Max.)
---
Grid Dissipation (Max.)
4 Watts
Frequency for Max. rating (CW)
350 MHz
Amplification Factor
200
Filament/Cathode
Oxide Coated
Voltage
13.5 Volts
Current
1.5 Amps
Capacitance
Grounded Grid
Input
26.0 pf
Output
6.1 pf
Feedthrough
0.5 pf
Capacitance
---
Input
--- pf
Output
--- pf
Feedthrough
--- pf
Cooling
Forced Air
Base
Large Wafer 11 pin
Air Socket
SK-1900
Air Chimney
SK-1906
Boiler
Length
2.52 in; 64.01 mm
Diameter
2.53 in; 64.26 mm
Weight
12 oz; 340 gm
