EIMAC 3CX6000A7 Tabung

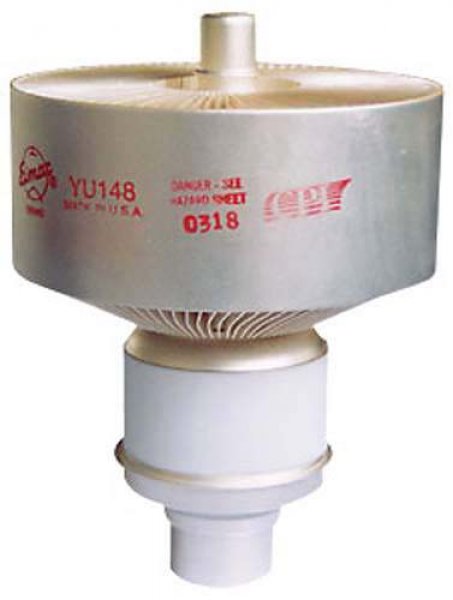

The 3CX6000A7 / YU-148 high-mu, forced air cooled power triode provides relatively high
power output as an amplifier, oscillator, or modulator at low plate voltages. The tube has a low
inductance cylindrical filament stem structure which readily becomes part of a linear filament
tank circuit for VHF operation. The grid provides shielding between the input and output circuits
for grounded grid applications and conveniently terminates in a ring between the plate and filament
terminals.
Specification:
Plate Dissipation (Max.)
6,000 Watts
Screen Dissipation (Max.)
N/A
Grid Dissipation (Max.)
225 Watts
Frequency for Max. rating (CW)
110 MHz
Amplification Factor
200
Filament/Cathode
Thoriated Tungsten
Voltage
7.0 Volts
Current
78.0 Amps
Capacitance
Grounded Cathode
Input
42.0 pf
Output
0.28 pf
Feedthrough
24 pf
Capacitance
N/A
Input
N/A
Output
N/A
Feedthrough
N/A
Cooling
Forced Air
Base
Special, Coaxial
Air Socket
N/A
Air Chimney
N/A
Boiler
N/A
Length
9.00 in; 22.86 cm
Diameter
6.125 in; 15.56 cm
Weight
9.1 lb; 4.1 kg
