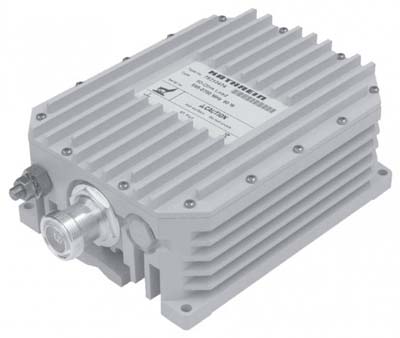

Kathrein 78210474 Brand New 50 Ohm Load 800 - 2700 MHz

Designed as 50-Ohm termination wherever improved intermodulation performance compared to standard loads is required
Excellent intermodulation performance
Suitable for indoor or outdoor application

Specifications:

Frequency range : DC–2700 MHz ( SUdah Dimodifikasi )
Impedance : 50 ohms
VSWR : < 1.12:1
Intermodulation : (2x20w) IM3: <-160 dBc
Input power : 250 Watt , ( Sudah di modifikasi )
Temperature range : -40° to +55° C
Connector : 7-16 DIN female (long neck)
Application : Indoor or outdoor (IP 66)
DC/AISG transparency : Built-in DC stop AISG: Attenuation up tp 3 dB when used in a network
Weight 6.8 lb : (3.1 kg)
Packing Size : (377 x 232 x 189 mm)
Mounting : NOT INCLUDED
