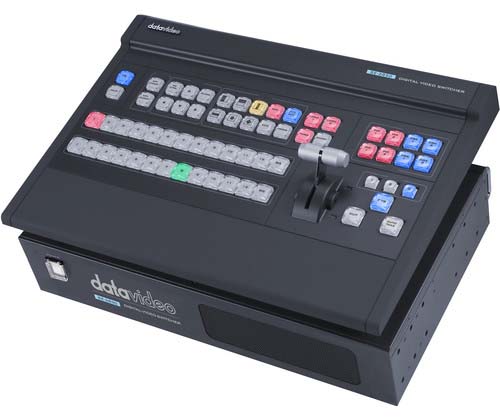

Datavideo SE-2850 HD/SD
Features
|
The SE-2850 HD/SD 8-Channel Video Switcher from Datavideo is a mixed format switcher with 8 HD/SD-SDI inputs and four assignable SDI and two assignable HDMI outputs for routing any combination of HD and SD video.
This switcher supports SDI/HDMI YUV 10-bit 4:2:2, and HDMI/RGB 4:4:4 color sampling for smoother color gradations. Housed in a 2 RU frame, the SE-2850 is ideal for use in both large broadcast systems or portable mini-racks for live productions. Routing is controlled via Ethernet using the included Windows software or via RS-422 control.
For advanced audio control, the SE-2850 can be connected to an external mixer (not included). Additional switcher features include dual PiP, two downstream keyers, cross-point video and audio, two independent logo functions, and a built-in title overlay system. The SE-2850 includes four XLR audio inputs with each audio channel featuring de-embedding and audio delay.
Features
Supports eight HD or SD inputs with six video and audio cross-point options on four SDI outputs
Dual user-positioned PiP, dual logo support, and dual downstream keyers (DSK) with Luma and alpha channel options
Four XLR audio inputs with two output modes; audio delay for each de-embedded audio source
Integrated title overlay system works with entry-level Datavideo CG systems
Additional features including frame store for each channel, 17 wipe choices, and master and countdown clocks
Datavideo SE2850-8 Specs
Video
| Video Standards | HD, SD |
| Video Format | 3G/HD/SD input: 1080i: 60/59.94/50 1080p: 60/59.94/30/25 HD Output: 1080i: 60/59.94/50 SD Output: 576i: 50 Hz 480i: 59.94 Hz |
| Video Processing | SDI: 4:2:2 HDMI: YUV 4:2:2 10-bit, RGB 4:4:4 |
Inputs/Outputs
| Input Routable / Crosspoint | 12, repeatable |
| Video Inputs | 8x SDI, 2x HDMI |
| Graphics Input | Maximum: 2 x HDMI |
| Video Outputs | 4 x SDI, assignable: PGM, PVW, AUX, Clean Out 2 x HDMI, assignable: PGM, Multi-View |
| Down-Conversion | 4 x SDI (channels 1-4) |
| Multiview Outputs | 2 x HDMI |
Audio
| Audio Input | 4 x XLR, balanced |
| Audio Output | 2 x XLR, balanced |
| Embedded Audio | Input Maximum: 16 x channels Output Maximum: 4 x channels |
| Audio Delay | Up to 8 frames (SDI-input audio only) |
Effects
| Chroma Key | N/A |
| Keyer/DSK | 2 x DSK Support: Lumakey & Linear key (key/fill) |
| PIP | 2 x |
| Logo Overlay | 2 x or 1 x logo + 1 x clock |
| Still Store | 12 x |
| Effects | FTB, Cut, 8 x wipes with border |
| Transition Preview | PiP, DSK |
Control
| Sync / Reference In/Out | Built-in GenLock External sync supported with loop-through |
| PC Remote Control | Ethernet (downloadable Windows software) RS-422 |
Physical
| Chassis | 2 RU, rackmount mainframe |
| Power | 12 VDC, 48 W |
| Dimensions (WxDxH) | Main Unit: 17 x 9.9 x 3.7" (432 x 251 x 93 mm) Control Unit: 17 x 12.3 x 2.8" (433 x 313 x 71 mm) |
| Weight | Main Unit: 10.4 lb (4.7 kg) Control Unit: 5.5 lb (2.5 kg) |
Packaging Info
| Package Weight | 22.65 lb |
| Box Dimensions (LxWxH) | 21.9 x 15 x 12.6" |
