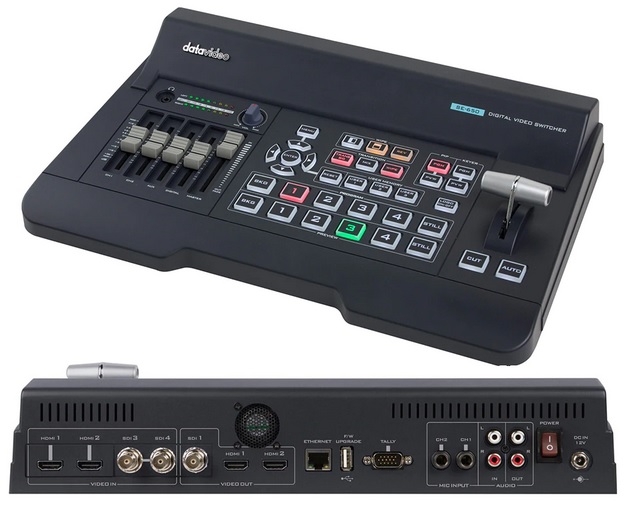

Datavideo SE-650 HD
Features
|
Combining a four-channel HD video switcher and a 6-channel audio mixer, the Datavideo SE-650 is an all-in-one solution for live video production. Video and embedded audio can be imported using two HD-SDI and two HDMI inputs; audio can also be brought in through analog inputs. Multiple video outputs enable you to send video to multiple locations. The output section is configurable, so you can choose which output is your multiview, and which are your program outputs. Having multiple program outputs means that you can have one output recorded separately, and one output sent to a streaming server for live broadcast online.
Use the control surface to switch angles in real time, apply effects, transitions, and fades to facilitate professional production value. Additional connections for expanding your I/O options include 1/4" microphone inputs and analog RCA audio, Ethernet, tally, and USB for firmware updates.
Any Input can be used as a frame (stills) store
Assignable outputs: Program (with DSK), Clean Program (without DSK), Clean Preview (without DSK), Multiview
Frame sync on each input
Flexible mix effects processor with one upstream keyer, supporting chroma key, and linear/luma key
One upstream PiP, supporting chroma key and luma key
Wipe generator: 32 wipe patterns including shapes with border and softness control
Full mix effects preview function
Logo insertion
XPT (Cross Point Assignment)
Tally output
Six-channel audio mixer
Supports embedded audio
Multi-language support
Datavideo SE-650 Specs
| Inputs | 2 x BNC HD-SDI 2 x HDMI Type A 1 x RCA stereo analog audio 2 x 1/4" TRS microphone |
| Outputs | 1 x BNC HD-SDI 2 x HDMI Type A 1 x RCA stereo analog audio |
| Other Ports | 1 x 15-pin tally 1 x USB (firmware upgrades) 1 x RJ-45 Ethernet |
| Power Supply | 12 VDC |
| Dimensions | 15.7 x 2.8 x 10.4" / 40 x 7.2 x 26.4 cm |
Packaging Info
| Package Weight | 7 lb |
| Box Dimensions (LxWxH) | 18 x 16 x 7" |
