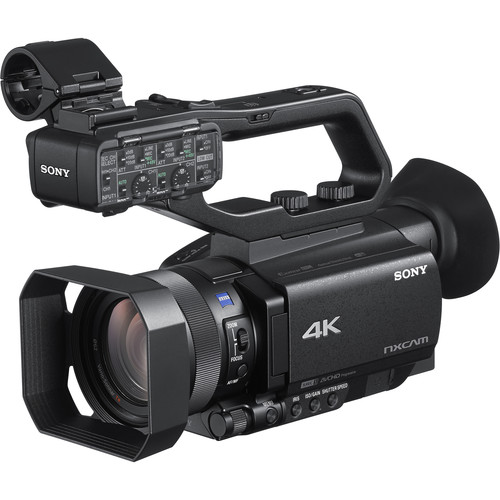

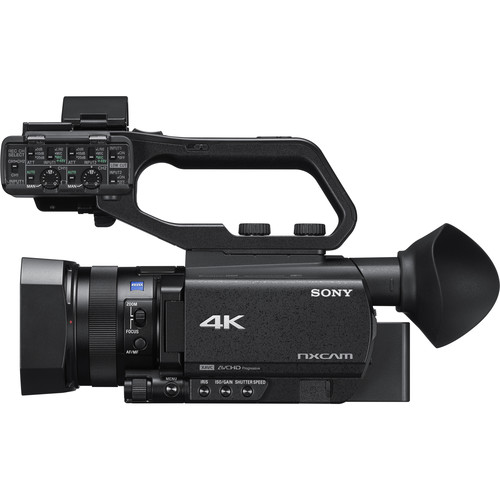

Sony HXR-NX80 4K NXCAM



Features

  • Single 1" Exmor RS CMOS Sensor
  • XAVC S 4K (3840 x 2160) at 100 Mb/s
  • 2.4 GHz Wi-Fi, Live Streaming
  • 4K HDR with Hybrid Log-Gamma (HLG)
  • Phase-Detection Autofocus (AF)
  • Zeiss 12x Optical, 18x Clear Image Zoom
  • FHD to 120 fps & Super Slow to 960 fps
  • XAVC-S (4K/HD) & AVCHD Recording
  • S-Log3/S-Gamut3 Imaging Options
  • 2 x SD Card Slots, Relay & Simul Modes



Take the Sony HXR-NX80 4K NXCAM camcorder with you wherever you go to capture rich 4K HDR video. This compact, palm-style camera offers phase-detection Autofocus (AF) and HDR capabilities in a compact, palm-style body. Suitable for corporate events, broadcast news, and television production, the HXR-NX80 camcorder features a stacked 1" Exmor RS CMOS sensor with 14.2MP, a 12x Zeiss optical zoom, an OLED viewfinder, and 3.5" touchscreen LCD monitor. This camcorder records 4K in XAVC S 4K, and it includes S-Log3/S-Gamut3 functions for additional image control. Additional features include built-in 2.4 GHz for multiple streaming options via RTMP/RTMPS protocols.

The HXR-NX80's Fast Hybrid AF uses high-density placement of autofocus points and a newly developed AF algorithm to offer highly accurate focusing and tracking, especially useful for individual operators. In movie recording mode, use the appearance of phase-detection AF frames to monitor your subject's focus. The HXR-NX80's 3.5" touchscreen is used to quickly switch focus among subjects. AF Drive Speed, Tracking Depth Range, and Subject Switching Sensitivity can each be configured to suit different subjects and content styles.

Hybrid Log-Gamma (HLG) enables you to future-proof your output by smoothly integrating your recordings into an HDR workflow without the need for color grading during post-production. Capture images with high-quality contrast and resolution using the HXR-NX80's 12x optical Zeiss zoom, and 18x 4K digital zoom (24x in HD). An integrated ND filter function enables greater exposure and depth-of-field control.

The HXR-NX80 camera supports Sony's Slow & Quick Motion for shooting HD video at variable frame rates, including 120 fps. Footage is recorded via two SD memory card slots, either simultaneously to both cards, or in relay mode to create a backup.

The HXR-NX80's audio features include two 3-pin XLR audio inputs that support line, mic, and mic +48V (phantom power) for using external microphones; you can also use the HXR-NX80's built-in microphone to record audio when shooting. For multicamera productions, the HXR-NX80 integrates seamlessly with Sony's MCX-500 live switcher (available separately).

Streaming

The camera supports RTMP/RTMPS live streaming protocols. This is included with the camera and as a free upgrade if your camera does not have this functionality. You can stream directly from the camera using Wi-Fi or via Ethernet with optional converters such as the Sony VMC-UAM2 or CBK-NA1. No computer is required for streaming.

1" Exmor RS CMOS Sensor

1.0"-type Exmor RS CMOS sensor with approximately 14.2 million effective pixels provides optimal image quality

Fast Hybrid Autofocus

Offers highly accurate focusing and tracking, especially useful when shooting sharp UHD 4K footage

Zeiss T* Lens with 12x Optical Zoom

Fixed 12x optical wide-angle zoom with 18x Clear Image Zoom technology in UHD 4K (24x in HD)

Frame Rate Flexibility

Record up to XAVC S 4K video

Super Slow Motion

Offers slow-motion recording up to 960 fps

Slow & Quick Recording

Uses Sony's Slow & Quick Motion for recording 1080pi60 HD video at 1, 2, 4, 8, 15, 30, 60, and 120 fps

Multiple Codec Choice

XAVC S recording up to 100 Mb/s in 4K mode, and Full HD recording

Image Control Options

S-Gamut3/S-Log3 recording captures a wide range of colors, highlights, and shadows

Built-In ND Filters

Incorporated ND filter function with Clear, 1/4, 1/16, and 1/64 ND for optimal exposure and depth-of-field control

Dual Media Slots

Dual memory card slots, one for SDHC/SDXC cards only, and one compatible with SDHC/SDXC and Memory Stick PRO Duo (Mark 2) / Memory Stick PRO-HG Duo cards

Wi-Fi/NFC

Built-in capability to send FTP files directly from the camcorder or live stream via the Ustream platform over 2.4 GHz Wi-Fi

Multi-Interface (MI) Shoe

The multi-interface shoe enables you to connect power, signal, and on/off functions for select Sony accessories
Please note: The XLR adapter handle must be removed to use the MI shoe


Sony HXR-NX80 Specs

Imaging
Image Sensor 1-Chip 1" CMOS Sensor
Sensor Resolution 21.00 MP
Effective Sensor Resolution 14.2 MP
Gain -3 to 33 dB
Minimum Illumination 3 Lux at 1/50 Shutter Speed
White Balance Range 2300 to 15,000K
Lens
Focal Length 9.3 to 111.6mm
35mm Equivalent Focal Length 29 to 348mm
Optical Zoom Ratio 12x
Max Digital Zoom 18x ( in UHD 4K)
24x ( in 1080p)
Maximum Aperture f/2.8 to 4.5
Minimum Focusing Distance Wide: 0.4" / 1.0 cm
Telephoto: 39.4" / 100.0 cm
Filter Size 62 mm
Control Rings Focus
Zoom
Image Stabilization Optical
Focus Control Autofocus
Manual Focus
Camera
Shutter Speed 1/6 to 1/10,000 sec
Built-In ND Filter Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters
Built-In Microphone Type Stereo
Recording Media 1 x SDXC/Memory Stick PRO Duo Hybrid Card Slot
1 x SDXC/SDHC Card Slot
Recording
Recording Modes XAVC S 4:2:0:
3840 x 2160p at 23.98/25/29.97 fps (60 to 100 Mb/s)
1920 x 1080p at 100/120 fps (60 to 100 Mb/s)
1920 x 1080p at 50/59.94 fps (25 to 50 Mb/s)
1920 x 1080p at 29.97 fps (16 to 50 Mb/s)
1920 x 1080p at 23.98 fps (50 Mb/s)
XAVC S:
1280 x 720p at 23.98/25/29.97/50/59.94 fps (9 Mb/s)
1280 x 720p at 23.98/25/29.97/50/59.94 fps (3 Mb/s)
AVCHD:
1920 x 1080PsF at 50/59.94 fps (28 Mb/s)
1920 x 1080i at 50/59.94 fps (17 to 24 Mb/s)
1920 x 1080p at 23.98/25/29.97 fps (24 Mb/s)
1440 x 1080i at 50/59.94 fps (5 Mb/s)
1280 x 720p at 50/59.94 fps (9 Mb/s)
Variable Frame Rates UHD: 1 to 30 fps
1080p: 1 to 120 fps
1080p: 240 to 960 fps
1080p: 250 to 1000 fps
Audio Recording XAVC: 2-Channel 16-Bit 48 kHz LPCM Audio
Proxy: 2-Channel 16-Bit 48 kHz AAC Audio
AVCHD: 2-Channel 16-Bit 48 kHz LPCM Audio
2-Channel 16-Bit 48 kHz AC-3 Audio
IP Streaming MPEG2, UDP: 1280 x 720 at 24p, 30p (3.0 Mb/s)
MPEG2, UDP: 640 x 360 at 24p (1.0 Mb/s)
Interfaces
Video Connectors 1 x HDMI Output
1 x Multi/Micro-USB A/V (Composite) Output
Audio Connectors 2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Input
1 x 1/8" / 3.5 mm TRRS Headphone/Microphone Headphone Output
Other I/O 1 x 2.5 mm LANC Control
Wireless Interfaces 2.4 GHz, 5 GHz Wi-Fi
Display
Display Type LCD
Screen Size 3.5"
Touchscreen No
Screen Resolution 1,560,000 Dots
EVF
EVF Display Type OLED
Screen Size .39"
EVF Resolution 2,360,000 Dots
Power
Battery Type Sony V-Series
Power Connectors 1 x Barrel Input
Power Consumption 6.1 W
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C
General
Accessory Mount 1 x Multi-Interface Shoe
Tripod Mount 1/4"-20 Female
Built-In Light Yes (Infrared)
Dimensions 5.1 x 7.1 x 11.3" / 130 x 181.5 x 287 mm
Weight 2.2 lb / 1 kg
Packaging Info
Package Weight 4.78 lb
Box Dimensions (LxWxH) 10.25 x 9.65 x 5.95"
