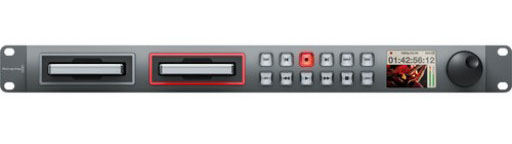

BMD HyperDeck Studio 2

The Blackmagic Design HyperDeck Studio 2 is a file-based deck that features the same functionality and control of professional tape decks. It records uncompressed video with 4:2:2 color sampling at 10-bit in Quicktime format, and also records video using either ProRes or DNxHD codecs. With two SSD slots, you can record almost endlessly as one SSD becomes full, recording automatically continues on to the other. The HyperDeck Studio features one 3G-SDI input and three SD/HD/3G-SDI outputs plus a loopthrough output, and one HDMI input and one HDMI output. All outputs, except the loopthrough SDI, are always active, so playback is available on both the SDI and HDMI outputs no matter what input it was recorded from.

The Studio 2 is a 1RU rack mountable unit, with built-in rack mount ears. It features illuminated front panel button control and a jog/shuttle wheel for analog scrubbing. RS-422 control is supported for external control. You can also control the unit using either the USB port or over Ethernet via the RJ45 connector. An integrated LCD on the front panel allows you to monitor the video, and display timecode and transport information.

File-Based Recording

The HypeDeck Studio 2 records to uncompressed Quicktime at 10-bit with 4:2:2 color sampling. It also records to ProRes 422(HQ), Avid DNxHD and Avid DNxHD MXF

Two SSD Bays

The unit incorporates two 2.5" SSD slots that allow you to record almost endlessly as recording seamlessly switches from one SSD to the other as the first one fills up.

Video Signals

The HyperDeck Studio 2 features separate dedicated input & output connectors, and supports SD/HD signals over SDI and HDMI. In addition to NTSC and PAL signals, 720 x 480p and 720 x 576p signals are only supported over HDMI.

VTR Style Controls

The HyperDeck Studio 2 features VTR style front panel controls for record and playback. With illuminated buttons, for working in dim locations or settings, while a built-in jog/shuttle wheel provides analog style control over your playback.

Outputs

The HyperDeck Studio 2 features one HDMI, two SDI, and one SDI monitor out which are always active, no matter what the original input signal is. The exception is with 480p & 576p signals over HDMI, these signals will only play back over the HDMI output.
The unit also features a loopthrough SDI output that only passes the signal from the SDI input, and does not output recorded video from the SSDs.

Remote

The unit is controllable via RS-422 control and over the Ethernet or USB port.

Built-In LCD Monitor

The unit's front panel also features a built-in LCD screen that allows you to monitor input or playback video as well as timecode, format, and audio levels.

SDI Connectors

The unit's SDI connectors are 3G capable, but currently the unit only supports HD video up to 1.5Gb/s (HD-SDI).

Included Software

The HyperDeck Studio 2 includes HyperDeck Utility.

SDI Video Input	1
SDI Video Output	2
SDI Rates	270Mb, 1.5G-SDI, 3G-SDI.
HDMI Video Input	1 x HDMI type A connector.
HDMI Video Output	1 x HDMI type A connector.
Analog Video Input	None.
Analog Video Output	None.
Analog Audio Input	None, embedded audio only.
Analog Audio Output	None, embedded audio only.
Timecode connections	None.
SDI Audio Input	16 channels embedded in SD and HD in QuickTime files. 2 channels in Avid DNxHD MXF files.
SDI Audio Output	16 channels embedded in SD and HD in QuickTime files. 2 channels in Avid DNxHD MXF files.
HDMI Audio Input	8 channels embedded in SD and HD in QuickTime files. 2 channels in Avid DNxHD MXF files.
HDMI Audio Output	2 channels .
Reference Input	Tri-Sync or Black Burst.
Recorder Configuration	Front panel configurable or USB 2.0 high speed interface.
Computer Interface	1 x type B USB 2.0 port for initial setup, software updates and HyperDeck Utility software control.
SD Video Standards	525i59.94 NTSC, 625i50 PAL
HD Video Standards	720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60
Ultra HD Video Standards	None.
SDI Compliance	SMPTE 259M, SMPTE 292M
SDI Metadata Support	HD RP188 and closed captioning.
Audio Sampling	Television standard sample rate of 48kHz and 24-bit.
Video Sampling	4:2:2
Color Precision	10-bit
Color Space	REC 601, REC 709
Copy Protection	HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Media	2 x SSD for SD and HD recording.
Media Type	SATA-II or SATA-III solid state disc.
Media Format	Can format discs to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Supported Codecs	Uncompressed QuickTime, Apple ProRes 422 HQ QuickTime, ProRes 422 QuickTime, ProRes 422 LT QuickTime, ProRes 422 Proxy QuickTime, Avid DNxHD QuickTime, Avid DNxHD MXF up to 1080i60
Computer Capture	None.
Control Built-in Control Panel	12 buttons for transport and menu control, 2.2" color display.
External Control	RS-422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck SDK and Ethernet HyperDeck Control Protocol.
Software Included	Media Express, Disk Speed Test, Blackmagic System Preferences and Blackmagic driver (Mac only).
Internal Software Upgrade	Firmware built into software driver. Loaded at system start, or via updater software.
Display	Built-in LCD for video, audio and timecode monitoring and menu settings.
Physical Installation	1 rack unit size. Less than 7 inches deep.
Operating Systems	Mac Icon Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan or later. Windows Icon Windows 8.1 or Windows 10.
Power Supply	1x Internal 100-240V AC.
Physical Specifications	48.26 cm x 15.70 cm x 4.45 cm (weight 2 Kg)
