GLITE IRD Decoder Full HD
GLITE IRD Decoder Full HD
Features
|

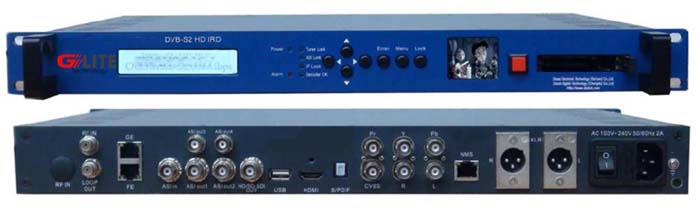

IRD DECODER with 2" LCD video monitor equipped on the front panel. It can receive signals from tuner (DVB-C, DVB-T/T2, DVB-S/S2, DMB-T, ISDB-T, and ATSC-T optional), ASI and IP sources. After multiplexing and de-encryption with CAM module, it gives content out through ASI, IP as well as various video/audio interfaces. Its video/audio outputs support professional HD/SD-SDI, Component YPbPr, HDMI, stereo balanced audio, stereo unbalanced audio and S/PDIF digital audio and Composite Video, which can greatly satisfy the professional users’ needs. With the CAM slot (CI/CI+) support, The IRD Decoder can support one channel (Tuner, ASI or IP) de-scrambling and give transparent signal output. User can operate the device by using front panel LCD or NMS/SNMP software or Webpage-based NMS. Moreover, users can choose to have an optional ASI output which can pass through the encryption data source directly from tuner.
Specificaions :
|
Input Interface |
Tuner |
1 Tuner (DVB-C/DVB-S/ DMB-T/DVB-T/ DVB-S2/ ISDB-T/ATSC-T / DVB-T2 optional) DVB-C: 47 MHz~860 MHz, 16/32/64/128/256 QAM DVB-S: 950 MHz~2150 MHz, symbol rate: 2~45Mbauds DMB-T: 146MHz ~862 MHz, 6/7/8 M bandwidth DVB-T: 146MHz ~862 MHz, 6/7/8 M bandwidth DVB-S2: 950 MHz~2150 MHz, symbol rate: QPSK 1~45Mbauds, 8PSK 2~30Mbauds ISDB-T: 153 MHz ~862 MHz, 6/7/8M bandwidth ATSC-T: 54MHz~858MHz, 6M bandwidth DVB-T2: 44MHz ~1002 MHz, 6/7/8 M bandwidth |
|||
|
ASI |
1 ASI IN(support 188/204 package format) |
||||
|
IP |
1 IP(100M, RJ45 Port) |
||||
|
Output |
ASI Output |
2 ASI output(after multiplexer) |
|||
|
2 ASI output(tuner input pass through) |
|||||
|
IP output (UDP, RTP/RTSP) |
1 MPTS output |
||||
|
8 SPTS output |
NDS397x only |
||||
|
32 SPTS output |
NDS399x only |
||||
|
Video Output |
1 x COMPOSITE (BNC): 576i@25fps, 480i@29.97fps |
||||
|
1 x YPbPr(RGB): 1080i@25, 29.97, 30fps; 720p@50, 59.94fps |
|||||
|
1 x HD/SD-SDI (BNC): 1080i@25, 29.97, 30fps; 720p@50, 59.94fps; 576i@25fps; 480i@29.97fps |
|||||
|
1 x HDMI: 1080i@25, 29.97, 30fps; 720p@50, 59.94fps |
|||||
|
Audio Output |
Stereo unbalanced audio: BNC interface Stereo balanced audio: XLR interface Digital audio: SPDIF |
||||
|
Video Decoding |
MPEG-2, MPEG-4 |
||||
|
Audio Decoding |
MPEG1 layer 2, AC3, HE-AAC(v2), LC-AAC |
||||
|
NMS Port |
Ethernet Port |
10/100M |
|||
|
Protocols |
TS Over IP: UDP NMS: TCP/IP |
||||
|
System |
Management: front panel (LCD + Keyboard); Network (NMS/SNMP); Web Management |
||||
|
English and Chinese interface conversion |
|||||
|
Ethernet port for CPU/FPGA upgrade USB port for decoder upgrade |
|||||
|
LCD Monitor for decoding video |
|||||
|
Miscellaneous |
Dimensions |
482mm*455mm*44.5mm ( L×W×H) |
|||
|
Approx weight |
3.2kg |
||||
|
Power |
<20W(Max) |
||||
|
Temperature |
0~45â (Operating), -20~80â (Storage) |
||||
