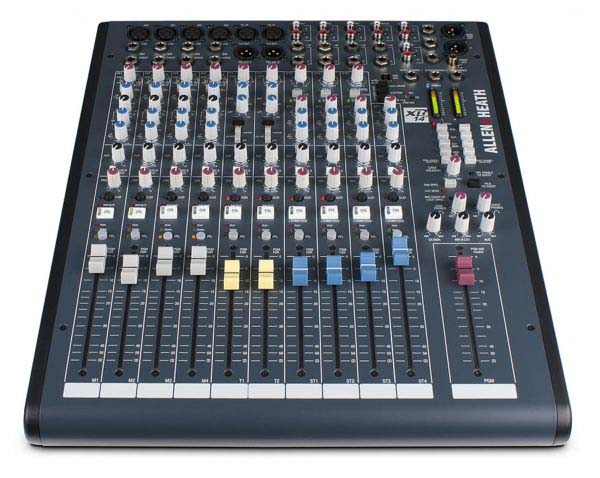

Allen & Heath XB-14-2



Features

  • 4 mic/line channels
  • 4 Dual Source stereo channels
  • 2 Telco channels
  • HPF and 3-band, swept mid EQ on mono channels
  • 2-band EQ on stereo channels
  • Variable high pass / low pass filters on Telco channels



XB-142 offers a host of specialised broadcast features that normally come at a much higher price, including telephone communication (telco) channels, mic channel ON switch sensing, stereo channel start/cue outputs for playback device control, automatic muting of speaker outputs and much more.


XB-142 incorporates new features and styling based on feedback from the many broadcasters who have built their operations around the original XB-14. With a wealth of routing options, dual stereo channels for up to 7 stereo sources, and the addition of a dedicated Audition bus, enhanced microphone preamps and stereo channel gain range, XB-142 satisfies the demands of small radio and internet broadcasters as well as larger studios with multiple rooms. With no less than 27 logic I/O for remote control and 15 configuration switches, XB-142 is a highly flexible solution.

  • 4 mic/line channels
  • 4 Dual Source stereo channels
  • 2 Telco channels
  • HPF and 3-band, swept mid EQ on mono channels
  • 2-band EQ on stereo channels
  • Variable high pass / low pass filters on Telco channels
  • Smooth-ride 100mm faders
  • 2-stage, padless pre-amp design
  • Fader-start sensing on mono channels
  • Start/cue logic outputs on stereo channels
  • External meter socket
  • Separate headphones mix for engineer/producer and 2 guests
  • Auto mutes on control room outputs
  • Remote mute facility on mic channels
  • Configurable USB stereo audio in/out
  • Audition bus for auditioning and off-air recording
  • Aux and separate stereo busses for processing/recording
  • XLR main outputs with inserts
  • Input signal and peak metering
