Cable Teflon Jumper
ANDREW Flange 7/8"

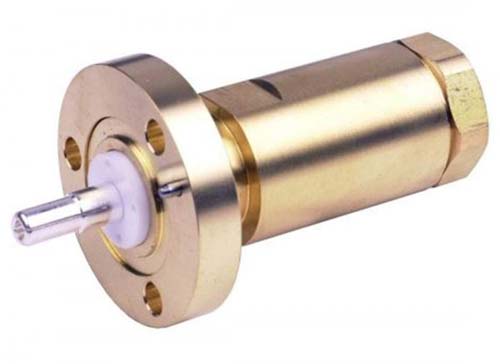

ANDREW L45R is 7/8" EIA flange for 7/8" LDF cable.
General Specifications | |
Interface | 1-5/8 in EIA Flange |
Body Style | Straight |
Brand | HELIAX® |
Mounting Angle | Straight |
Electrical Specifications | |
Connector Impedance | 50 ohm |
Operating Frequency Band | 0 – 2500 MHz |
Cable Impedance | 50 ohm |
RF Operating Voltage, maximum (vrms) | 2120.00 V |
dc Test Voltage | 6000 V |
Outer Contact Resistance, maximum | 1.50 mOhm |
Inner Contact Resistance, maximum | 1.50 mOhm |
Insulation Resistance, minimum | 5000 MOhm |
Average Power | 2.3 kW @ 900 MHz |
Peak Power, maximum | 90.00 kW |
Insertion Loss, typical | 0.05 dB |
Shielding Effectiveness | -110 dB |
Mechanical Specifications | |
Outer Contact Attachment Method | Self-flare |
Inner Contact Attachment Method | Tab-flare |
Outer Contact Plating | Unplated |
Inner Contact Plating | Unplated |
Attachment Durability | 25 cycles |
Interface Durability | 50 cycles |
Connector Retention Tensile Force | 2224 N | 500 lbf |
Connector Retention Torque | 13.56 N-m | 120.00 in lb |
Pressurizable | No |
Dimensions | |
Nominal Size | 1-5/8 in |
Diameter | 88.90 mm | 3.50 in |
Length | 129.54 mm | 5.10 in |
Weight | 1555.85 g | 3.43 lb |
