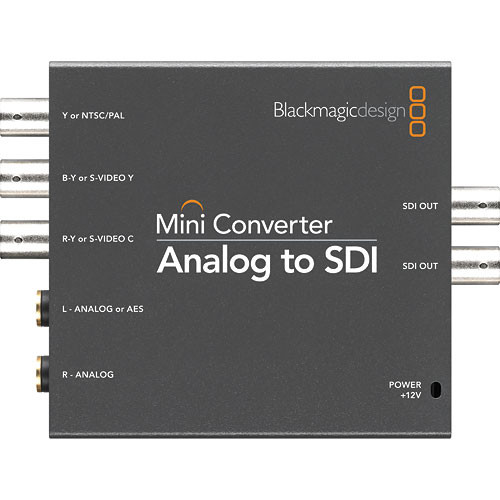

The Mini Converter Analog to SDI from Blackmagic will accept an HD/SD component, NTSC, PAL, or S-video signal and convert it to an SDI output. You can also choose to embed SDI audio from balanced AES/EBU or analog audio inputs. Use this device to convert video from Betacam SP, VHS, set-top boxes, HDV cameras, and other similar devices.
Analog to SDI Conversion
Use this device to convert analog video sources to SDI video output.
Embedded Audio
This unit can embed SDI audio from balanced AES/EBU or analog audio inputs.
| SDI Video Output | Automatically matches the SD and HD video input. |
|---|---|
| Analog Audio | 2 channels of professional balanced analog audio with standard 1/4 inch jack connections. |
| Analog Video | Component SD/HD, NTSC, PAL and S-Video. |
| AES/EBU Digital Audio | 2 channels of professional balanced digital with standard 1/4 inch jack connections. |
| Multi Rate Support | Auto detection of HD or standard definition inputs. |
| Updates and Configuration | USB |
| Reclocking | Yes |
| SDI Compliance | SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 424M-‐B, ITU-R BT.656 and ITU-R BT.601. |
| SDI Video Rates | SDI video connections are switchable between standard definition and high definition. |
| SDI Video Sampling | 4:2:2 |
| SDI Audio Sampling | Television standard sample rate of 48 kHz and 24 bit. |
| SDI Color Precision | 4:2:2 |
| SDI Color Space | YUV |
| SDI Auto Switching | Automatically follows format of analog input. |
| SDI Format Support | 525i23.98 NTSC, 525i29.97 NTSC, 625i25 PAL 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 |
| Analog Format Support | 525i23.98 NTSC, 525i29.97 NTSC, 625i25 PAL 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 |
| Analog Color Space | YUV |
| Analog Color Precision | 4:2:2 |
| Software Control | Mac OS X™ and Windows™ software upgrade via USB. |
| Internal Software Upgrade | Via included updater application. |
| Operating Systems | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan or later. Windows 8.1 or Windows 10. |
| Settings Control | Mini Switches or USB software. |
| Power Supply | +12V universal power supply included with international socket adapters for all countries. Cable tie point. |
| Power Consumption | 6.50 Watts. |
| Operational Voltage Range | 12 - 31V DC. |
| Operational Voltage Range | 12 - 31V DC. |
| Physical Specifications | 12.29 cm x 9.22 cm x 2.29 cm (weight 8.36 oz/237 gram) |
| Operating temperature | 0° to 40° C (32° to 104° F). |
| Storage temperature | -20° to 45° C (-4° to 113° F). |
| Relative Humidity | 0% to 90% non-condensing. |
